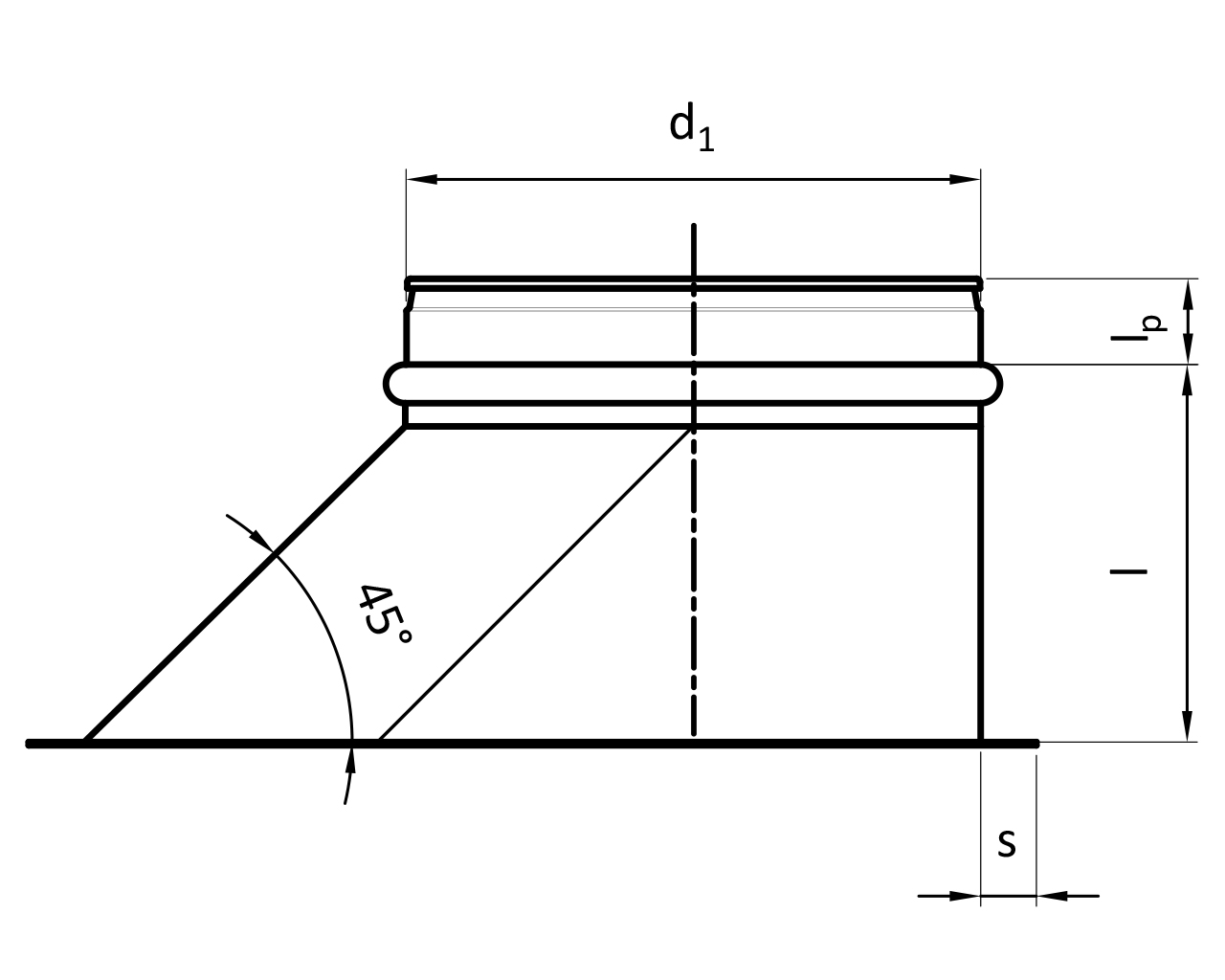

The FLBF Flatshoe is a curved boot with a narrow rim and a 45° flow portion on one side that allows for an airflow to the branch with less resistance.
Item code | Stock | d1 | l | lp | s | Box # | Pallet # | Weight (kg) | ||
FLBF010 | 100 | 73 | 43 | 10 | 49 | 392 | 0.22 | |||
FLBF012 | 125 | 86 | 43 | 10 | 70 | 280 | 0.31 | |||
FLBF015 | 150 | 98 | 43 | 10 | 49 | 196 | 0.41 | |||
FLBF016 | 160 | 103 | 43 | 10 | 36 | 144 | 0.45 | |||
FLBF018 | - | 180 | 118 | 43 | 10 | 18 | 108 | 0.57 | ||
FLBF020 | 200 | 123 | 43 | 10 | 20 | 80 | 0.64 | |||
FLBF022 | - | 224 | 143 | 53 | 10 | 18 | 72 | 0.84 | ||
FLBF025 | 250 | 138 | 53 | 10 | 18 | 72 | 0.90 | |||
FLBF028 | - | 280 | 153 | 53 | 10 | 10 | 40 | 1.10 | ||
FLBF030 | 300 | 163 | 53 | 10 | 8 | 32 | 1.20 | |||
FLBF031 | 315 | 181 | 53 | 10 | 8 | 32 | 1.40 | |||
FLBF035 | - | 355 | 171 | 53 | 10 | 24 | 24 | 1.55 | ||
FLBF040 | - | 400 | 173 | 53 | 10 | 21 | 21 | 1.75 | ||
FLBF045 | - | 450 | 193 | 53 | 10 | 16 | 16 | 2.15 | ||
FLBF050 | - | 500 | 193 | 53 | 10 | 16 | 16 | 2.75 | ||
